MSO8000-RIGOL Technologies, Co. Ltd.

Digital Oscilloscope

MSO8000 Series

The MSO8000 series digital oscilloscope is a mid- to high-end mixed-signal digital oscilloscope based on RIGOL's proprietary intellectual property ASIC chip and UltraVision II technology platform.

DataSheet

Trial-Request

Product Information

Starting Price (Exclude Taxes)

₩12268000

2GHz

BANDWIDTH

10GSa/s

REAL-TIME SAMPLE RATE

ANALOG CHANNELSREAL-TIME

500Mpts

MAX. MEMORY DEPTH

600,000 wfms/s

WAVEFORM CAPTURE RATE

FEATURES

MODEL

SOFTWARE & FIRMWARE

PROBE

UPGRADE & ACCESSORIES

MANUAL

Video

FEATURES

2 GHz Performance for Advanced and Serial Analysis Applications

Category Leading Performance for today's most complex embedded debug challenges. Characterize and Debug Communication Links with integrated Jitter and Real-Time Eye Diagram Solutions 10GSa/sec max Sample Rate 500MPts max Record length >600,000 wf/sec Waveform Capture Rate Jitter and Eye Analysis Option Powerful Search and Mark Capabilities.

Economical and Practical Eye Diagram Pretest

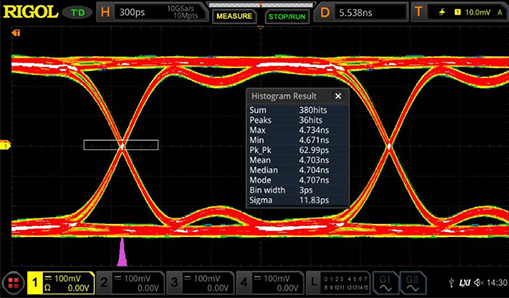

Eye diagram measurement with an oscilloscope can help users visually display the transmission quality of digital signals, thereby understanding the strength of crosstalk between codes in the system, and making improvements in system design. For those who often need to verify the quality of digital signals, the MSO8000 digital oscilloscope with eye diagram function is your wise choice.

Support for Dither Analysis of Diverse Displays

The MSO8000 Series with the MSO8000-JITTER option enables Jitter and Real-Time Eye analysis. Debug subtle timing effects in your high speed clock and digital data lines by visualizing error sources with the eye diagram, histogram, and jitter trend. Combine these visualization tools with direct measurements of the most common jitter and eye parameters.

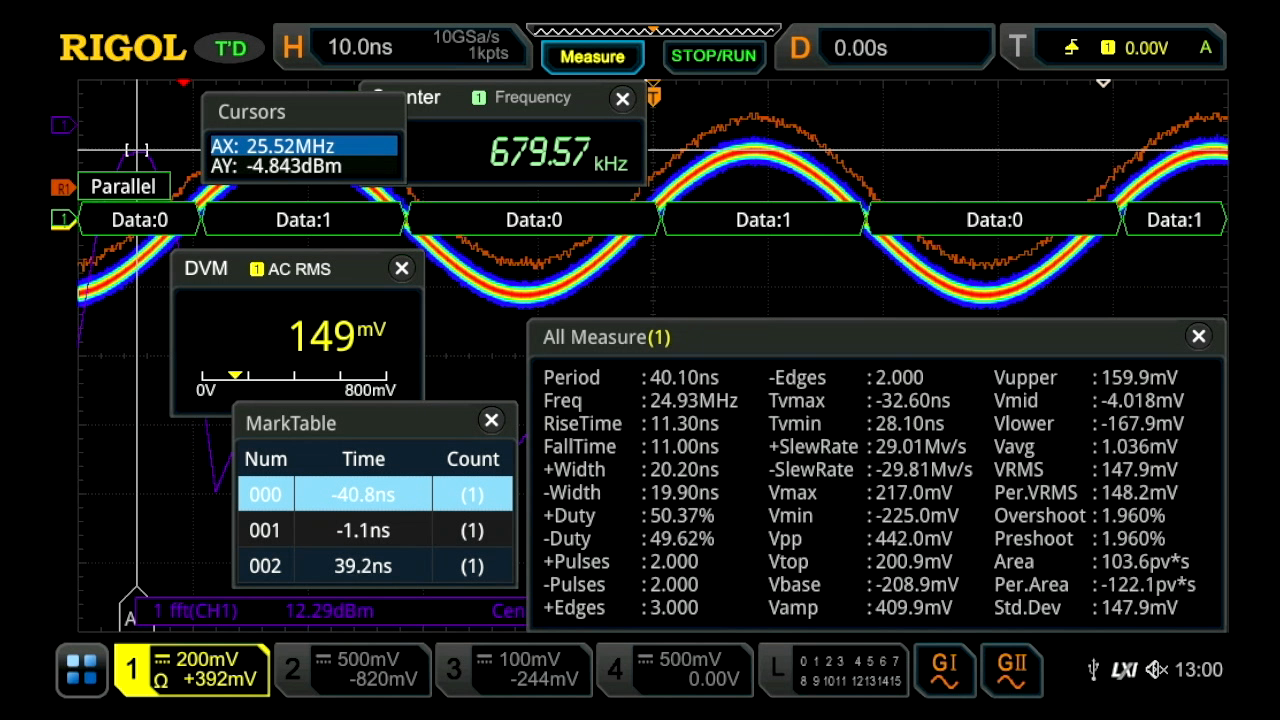

Full Memory Hardware Measurement

No longer limited to the waveform effects visible on the screen, the results can still be accurately obtained for multi-cycle high-frequency signal testing.

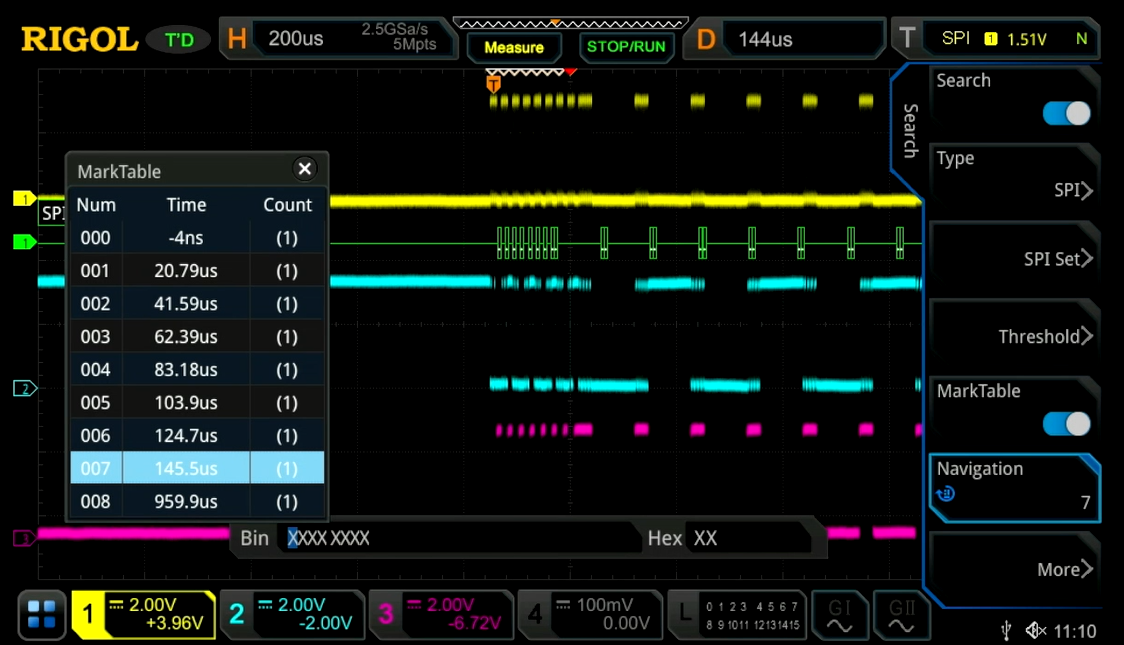

Trigger, decode, and visualize serial bus traffic to speed analysis and debug

The MSO8000 Series provides decoding on up to 4 serial buses simultaneously. The MSO8000 provides the option of viewing traffic in a comprehensive event table. Choose from our expanded bus list including RS232/UART, I2C, SPI, LIN, CAN, FlexRay, I2S, and MIL-STD-1553. Add to that search and mark capabilities for the most common serial buses to debug systems quickly and easily.

Minimize scope “dead time” between trigger events and increases

Faster capture times reduce the time it takes to visualize these transient effects. Most of the scope’s capabilities can be used without sacrificing waveform capture rate performance. This enables detailed analysis with high signal fidelity.

Find elusive problems in complex digital streams with long acquisitions at high sample rates

The MSO8000 provides up to 500 Mpt record lengths while making it easier than ever to utilize these samples. The MSO8000 provides complete search navigation and wave recording capabilities to harness the value of our deeper memory.

MODEL

BANDWIDTH

ANALOG CHANNELS

REAL-TIME SAMPLE RATE

MAX. MEMORY DEPTH

WAVEFORM CAPTURE RATE

DIGITAL CHANNELS

BUILT-IN SIGNAL SOURCE

PRICE (Exclude Taxes)
MSO8064

600MHz

4

10GSa/s

500Mpts

600,000 wfms/s

16(Probe opt.)

25MHz, 2CH（opt.）

E96E379BAA804A0C932AB55923AA5B07

196E5902F80240B89C361289B6732539

339BB4432DB4436182DD129DA9EC2962

MSO8064

加入对比

₩12268000
MSO8204

2GHz

4

10GSa/s

500Mpts

600,000 wfms/s

16(Probe opt.)

25MHz, 2CH（opt.）

E96E379BAA804A0C932AB55923AA5B07

87C07324DD7547189EC7A73539DB7046

339BB4432DB4436182DD129DA9EC2962

MSO8204

加入对比

₩20012000
MSO8104

1GHz

4

10GSa/s

500Mpts

600,000 wfms/s

16(Probe opt.)

25MHz, 2CH（opt.）

E96E379BAA804A0C932AB55923AA5B07

2A9D681802694D0C8EB43BED05AFBC36

339BB4432DB4436182DD129DA9EC2962

MSO8104

加入对比

₩15630000

PASSIVE PROBE

MODEL

DESCRIPTION

PRICE (Exclude Taxes)

MANUAL

RP1018H

18kV 150MHzHigh voltage probe

$ 988
